DEMO

Progressive Die Design in NX

50-minute • 6-Part • David Chiu
Watch a progressive die base designed in NX using a structured workflow and industry-specific processes.

DEMO

Progressive Die Design in NX

50-minute • 6-Part • David Chiu
Watch a progressive die base designed in NX using a structured workflow and industry-specific processes.

Structured Workflow

  • The step-by-step process applies the most efficient workflow based on expert best practices.
  • Automated processes take care of tedious design tasks for remarkable time savings.

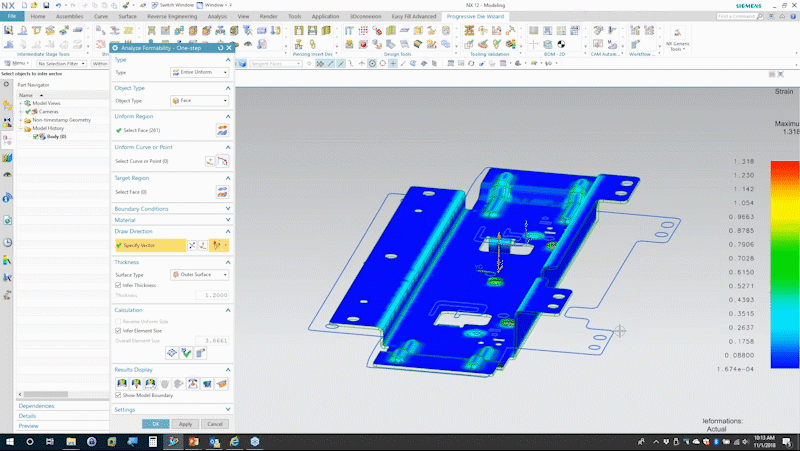

Structured Workflow in NX Progressive Die Design Wizard

Phase 1: Process Design

  • Automatically recognize sheet metal features on models imported from other CAD systems.
  • Unfold and nest the blanks on a sheet metal stock and develop a skeleton strip with tools that simulate the forming operation at each die station.

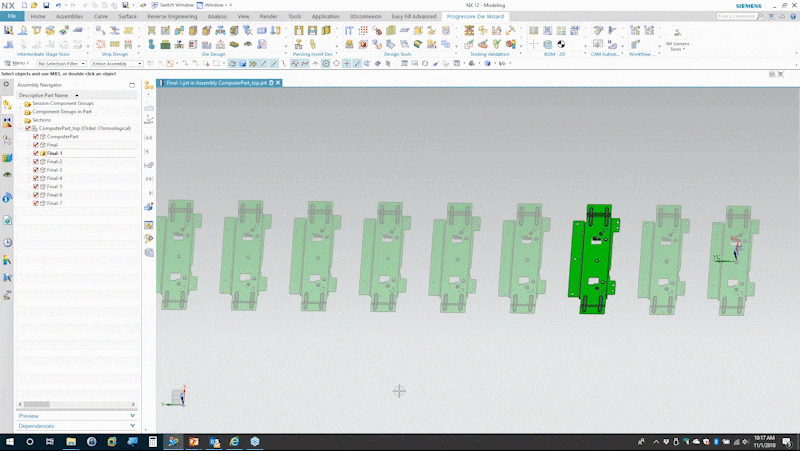

Process Design in NX Progressive Die Design

Phase 2: Die Base Design

  • The die structure, stations, and inserts are developed directly from the strip model.
  • A library of standard parts and die bases are available to customize and use in your die structure design.

Watch the demo
