DEMO
Mold Design
in NX
24 min • 6-part • Garrett Koch

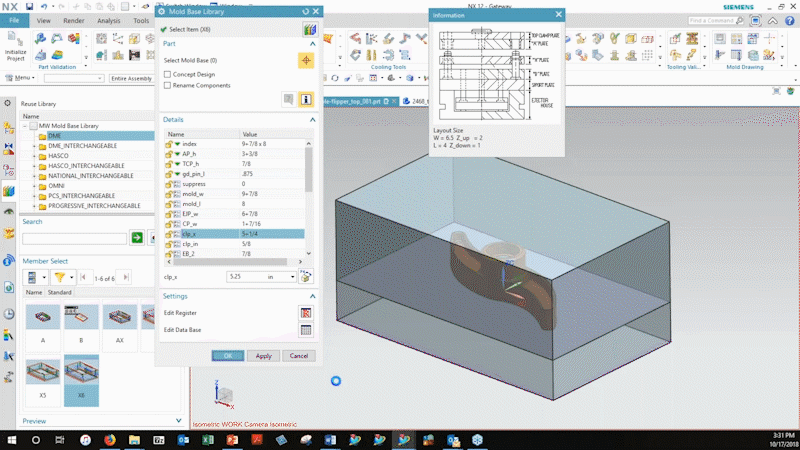

See a mold base designed in 5 steps using a structured workflow.
DEMO
Mold Design
in NX
24 min • 6-part • Garrett Koch
See a mold base designed in 5 steps using a structured workflow.
Structured Workflow
- The step-by-step process applies the most efficient workflow based on expert best practices.
- Automation of mold-specific design tasks like parting definition and cavity insert creation shortens lead time dramatically.
Molded Part Validation
- Analyzing a part for manufacturability early in the process saves rework and tooling costs later.
- NX checks and validates wall thickness, draft angle, corner radius, feature distance, and crossover faces to ensure the part is moldable.
Core & Cavity Insert Creation
- NX automatically creates mold cores and cavities using the part geometry.
- Visually check core and cavity sides without special analysis or knowledge of mold design.
