What are Assembly Arrangements?
What are Assembly Arrangements?
Assembly Arrangements allow sub-assemblies, used in a higher-level assembly, to be shown in alternative positions or with alternative content, but without having to create a completely new assembly file.
An example:
- A valve assembly is used 2 times in a higher-level assembly.
- To establish intention, it is required to show one valve open, and the other valve closed.
- The Parts List needs to show that they are both the same, that is a single reference with a quantity of 2.
This is an application for assembly arrangements
Start with creating the valve assembly with the default configuration being ‘Open.’ Then create a second arrangement, moving the components necessary to show the valve as being ‘Closed’ and save as another Arrangement, ‘Closed.’
When adding the valve assembly into a ‘Where Used’ assembly you have the choice of adding the valve using either Arrangement.
This allows more than one valve to be used in the assembly, using either Arrangement, and the Parts List will see the valve assemblies as the same part file.
Let’s look at another example, in more detail.
A clamping vise
We will make 3 arrangements. Fully Open, Fully Closed and Mid position
Before we begin, note this assembly has been opened with options of:
Load: From Folder
Scope: All Components and Fully Load
This assembly has also had its parts positioned with assembly constraints
Let’s begin:
Examine the existing assembly constraints in the Constraint Navigator:
- Click the Constraint Navigator tab on the Resource bar.
- Right-click just inside the left edge of the Constraint Navigator panel and choose Group by Component Status in the context menu.
This will organize the list of components into folders based on their constraint status.
The constraint navigator will look like this
We have expanded the Fully Constrained and Fixed Folders
The fixed jaw, moving jaw and slider sub- assemblies are fully constrained
Look at the top-level assembly next
Top-Level Assembly
Reviewing the constraints, the subassemblies have been placed and referenced to the fixed jaw
Lastly, a distance constraint has been added
This distance constraint will be made Arrangement Specific, and its parameter will be set within the desired configuration
Set parts/sub-assemblies to be arranged to ……..Individually Positioned
Open the Component Properties with a Right-Click
Then select the Position in Used Arrangement to Individually Positioned under the Parameters Tab.
Do this for each sub-assembly
Now we can create our Arrangements
Earlier we described our arrangements as open, closed and mid position driven by the distance constraint
Right-click on the distance constraint, and make it Arrangement Specific
Note the icon, before……
Note the icon, after……

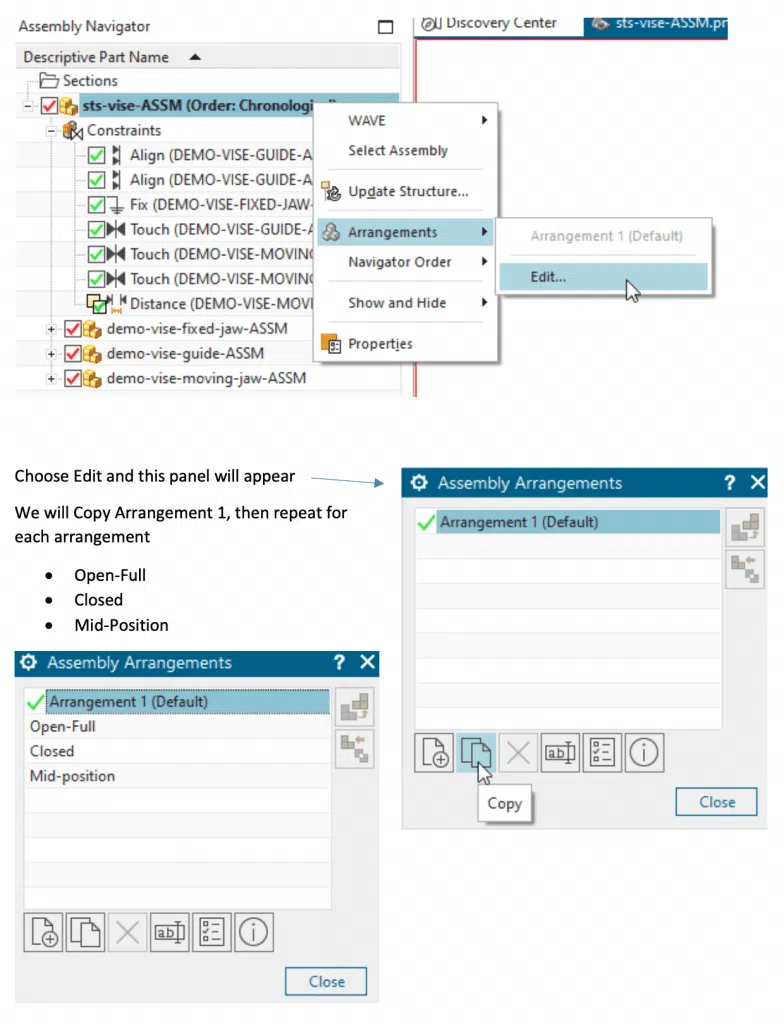

Next, Right-Click on the Top-Level assembly, as this is where we create the arrangements
With our arrangements defined, next step is to edit the distance parameter
- In this example, we are modifying the arrangement specific distance constraint Right-Click on the Distance (arrangement specific) constraint, and edit in arrangements
This is why we copied each arrangement.
Now set expression value for distance in each arrangement
Set distance values….
Uncheck Shared State
Uncheck Arrangement 1
Verify States
Closed
Mid-position
Open-full
There are many other options, such as suppressing components that also may be used in assembly arrangements.
Your turn!
For more tutorials like this, be sure to stay updated by visiting our weekly blog >> The Swoosh Scoop: Blogs
Be sure to also subscribe to our YouTube channel, Swoosh Technologies, for other updates and informative videos about our company, software, and events.
