Organizing Data in Teamcenter

Organizing Teamcenter Data

Have you ever found yourself drowning in too many documents full of important data? Organizing an abundance of data within Teamcenter can be a struggle, but with Teamcenter folders, you can organize data and share assemblies in no time.

Over the next few months, our Teamcenter expert Craig is will illustrate a series of multiple Teamcenter tips. Today’s feature will breakdown the process of organizing Teamcenter data, all while covering the following:

  • The advantage of Teamcenter folders
  • Making a nested Teamcenter Folder Structure
  • How others can find your folders
  • How to Copy/Paste a Teamcenter folder into your Home Folder (or another location)

The Advantage of Organizing Teamcenter Data in Folders

Teamcenter Folders are more powerful organizational tools than ones in Windows or shared drives. So what are the key differences?



  1. They do not affect or control the data within them.
  2. Folder contents are actual links to the original data (just like bookmarks are to a webpage)
  3. You can create nested folder structures that are searchable
  4. And the most important: Windows Folders duplicate data, while Teamcenter Folders DO NOT!

Making a Hierarchy Folders, Finding Folders, & Placing a New Folder Into Your Home Folder

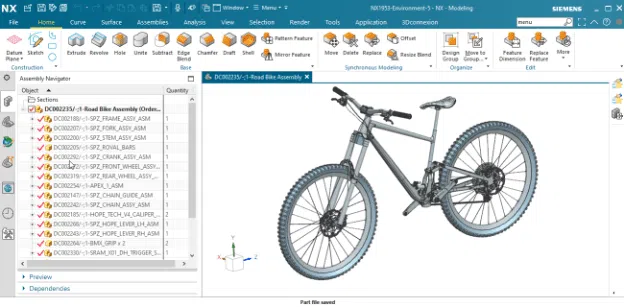

Your design looks like this in NX

NX Design

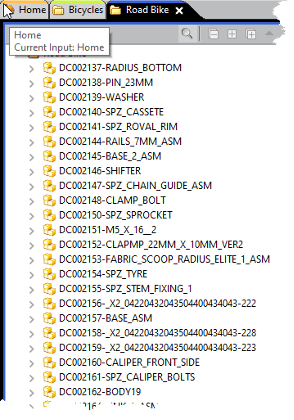

But like this in Teamcenter!

Organizing Teamcenter Data
Organizing Data

Teamcenter Folders are for organizing data in a familiar content.

Assembly Navigator Teamcenter
  1. In this example, DC002207 is the Fork Assembly. While in Teamcenter, make a folder for this assembly.
Fork Assembly in Teamcenter
  1. In your list, find DC0022207 and then click the View Properties button.
View Properties
  1. Then, copy the object’s information. This saves you from typing in the next step while making the new folder.

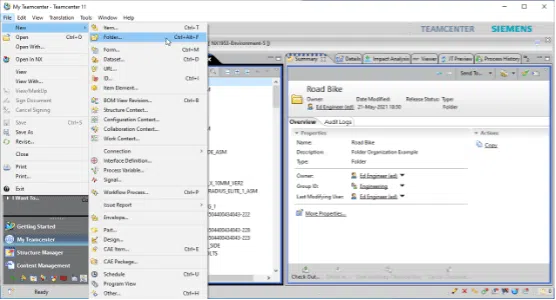

  1. Next, keep your cursor where you want to make the new folder. In this example, it is for “Road Bike Assembly.” Go to File > New > Folder.
File Folder Teamcenter

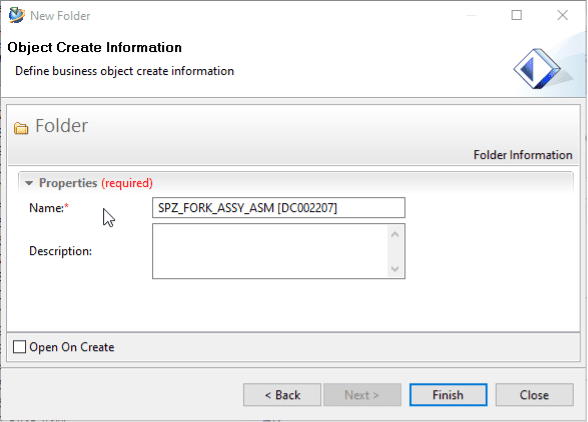

  1. In the New Folder “Object Create Information” panel, paste the View Properties information within this section. Note that in this example, we moved the item to the end.

Once in this panel, you can also either use this as is, or change it to a Name/Number format based on what your preference is.

Oject Create Information Teamcenter

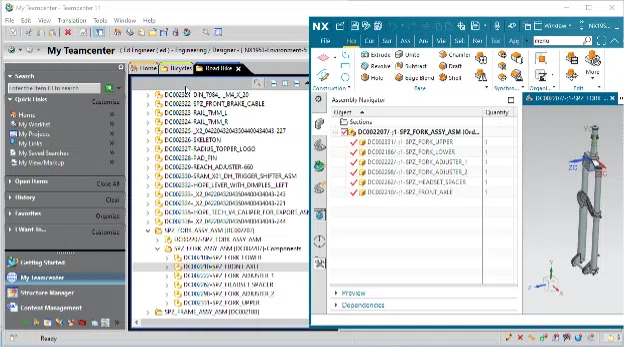

  1. Cut and Paste items to the corresponding folders.
Teamcenter Folders

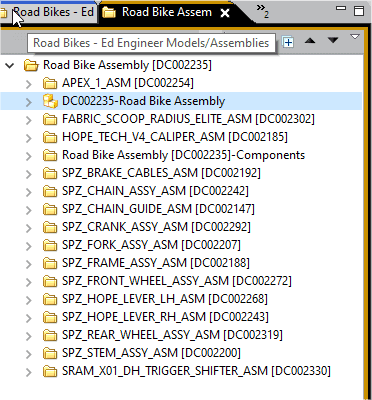

  1. About 45 minutes later, the Teamcenter Folders for your new folder will look like the following. In this example, it is for “Road Bike Assembly.”
Teamcenter Assemblies

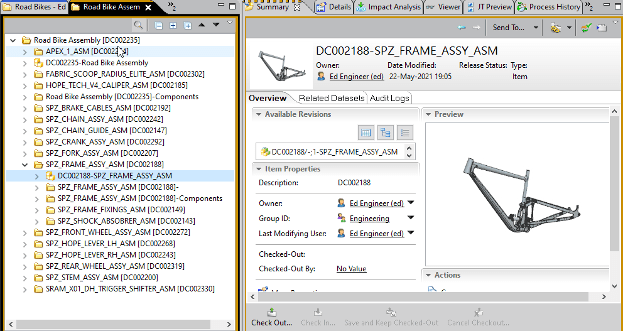

  1. If desired, you may also expand the sub-assembly.
Organizing Data in Teamcenter

Now, you have finished organizing data in Teamcenter. The Teamcenter folders are now set up and available for any review to parse through.

In Summary

As a helpful checkpoint, go over a design you did one, two, or five years ago. Can you find all the data for it? This is why organizing data in Teamcenter folders can help. By utilizing folders, organizing data in Teamcenter will make for better company results.



Keep in mind:

  • Folders should have meaningful and appropriate naming, and this should be consistently applied
  • Existing naming procedures should be followed
  • Design Review XXX-Date, Concept Assembly Project YYY, etc.
  • Folder organizations work best for hierarchy structured assemblies

To summarize, we can see that Teamcenter folders look like and how they function, much like our OS one’s- however, as previously mentioned, they are much more powerful. Items may be referenced into many Teamcenter folders, and if there is a change. the folder contents will update. Overall, this creates a much better user experience.

Catch Craig in the next Teamcenter series topic where he will uncover how to review a design in Teamcenter. In the next session, Craig will go in depth through a scenario where a Manager uses this blog’s folder structure to review an Engineer’s models and drawings. Stay tuned by seeing what’s up on the blog each week!
Post by Craig Robillard

Hello, I'm Craig! With beginnings starting as an engineer/draftsman back in 1983, I was the first user of McAuto Unigraphics II Version 1.0. At that time, Teamcenter was not invented, however the need for file management was soon recognized. I am now an Application Engineer at Swoosh Technologies that specializes in Teamcenter, and has a background in new product development, working on a wide range of products such as the following: Copiers, Ink Jet Printers, Scanners, Satellites like Google Earth, Fusion Energy Research, and Industrial Compressor Design (HVAC).
