I recently presented and demonstrated how to work with and set up an IPW (In Process Workpiece) in Siemens NX CAM. In the first of 3 IPW tutorials, I’ll be going through what IPW is, how it’s used, and how to set it up.

What is IPW?

Most commonly referred to as IPW, In Process Workpiece is a facet model of the material removed from the stock defined within the workpiece. Each operation removes a portion of stock until you’re left with the final part. It’s mostly used to drive the creation of a toolpath.

Most parts can’t be machined in one operation and will require a secondary (or even a third) operation. IPW can be transferred to subsequent apps as a flip app in the same profile, or it can be used on an entirely new setup.

In other words, you can go from a lathe to a mill and back to a lathe.

Setting Up the NX IPW View

The first thing we are going do is turn on the IPW Column under Operation Navigator.

  1. In the Operation Navigator column, right click on the top bar, hover over Columns, and then select IPW.
Operation Navigator Siemens NX

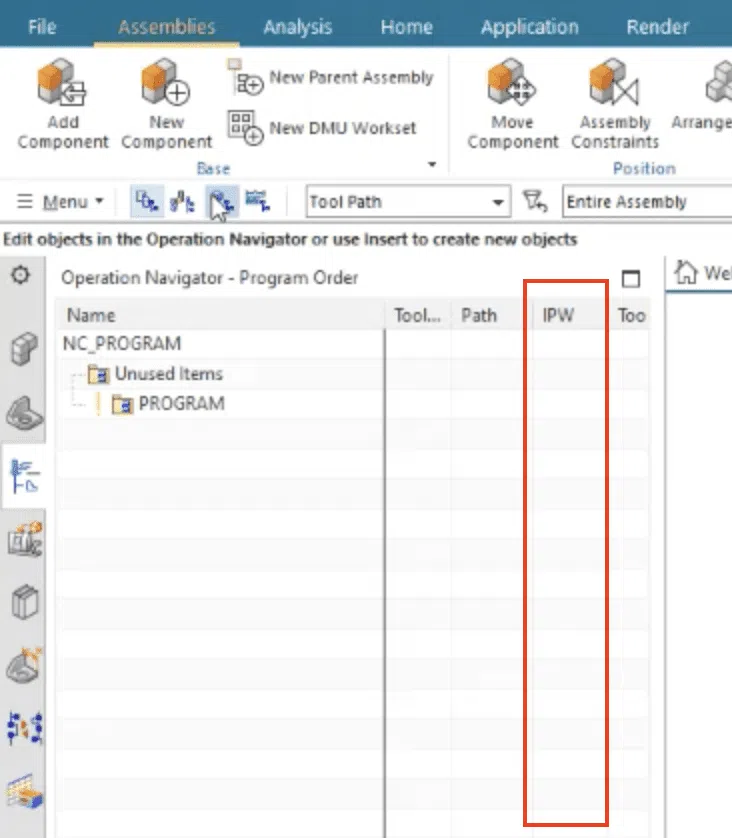

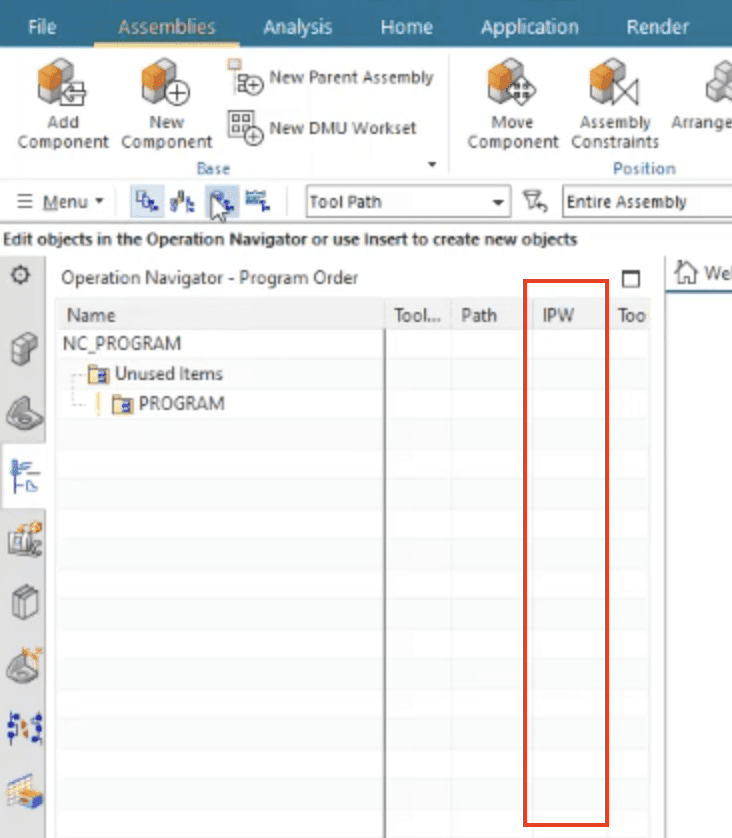

Now, the IPW is visible in the columns.

IPW Columns

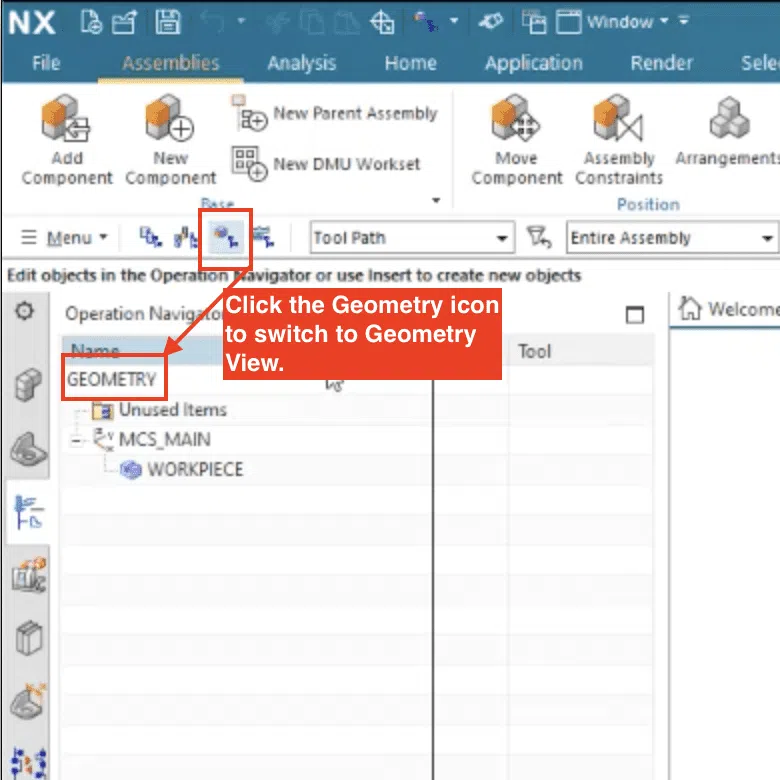

  1. Next, select the Geometry icon to change the view to Geometry View.
Geometry View Siemens NX

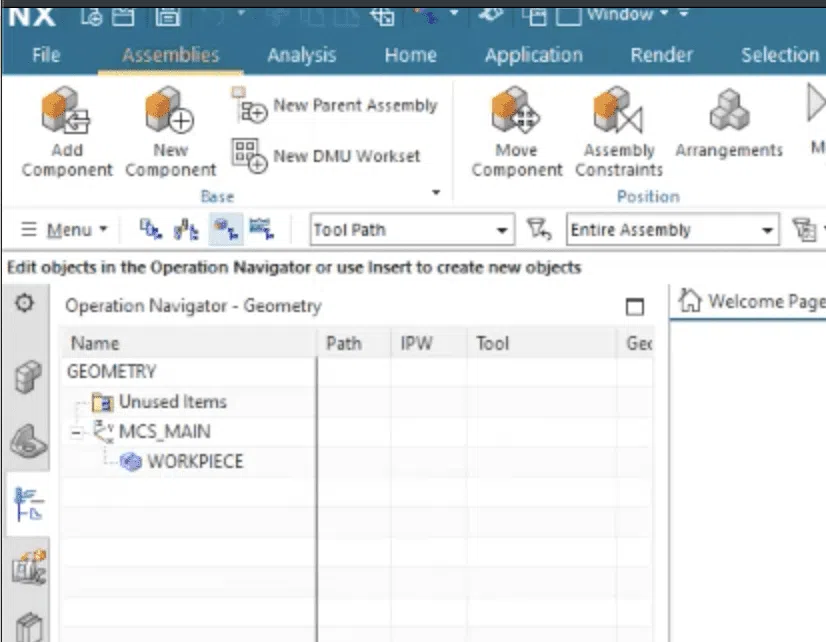

  1. Right click on the Operation Navigator, hover over Columns, and select IPW.
NX CAM IPW Navigator

Viewing Workpiece Settings

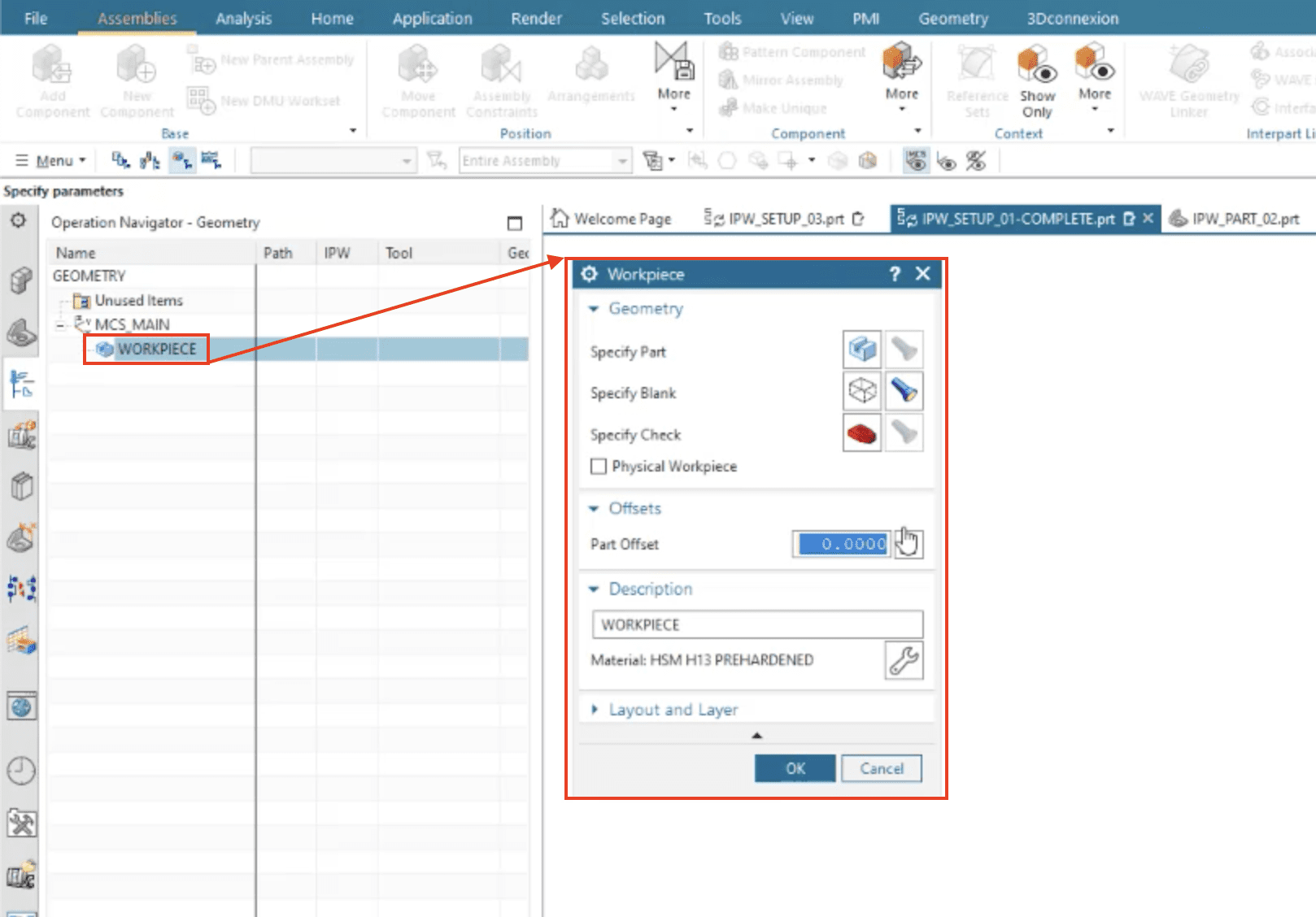

  1. Let’s take a look at how we have our parts set up. Double click on Workpiece under the Operation Navigator. This will bring up the Workpiece box.
Operation Navigator NX
NX Operation Navigator

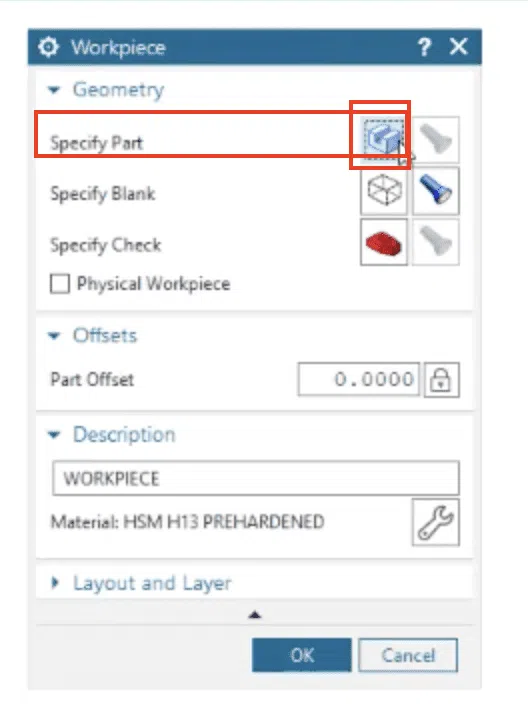

  1. First, we’ll Specify Part by selecting the first icon in the part column.
NX CAM Workpiece

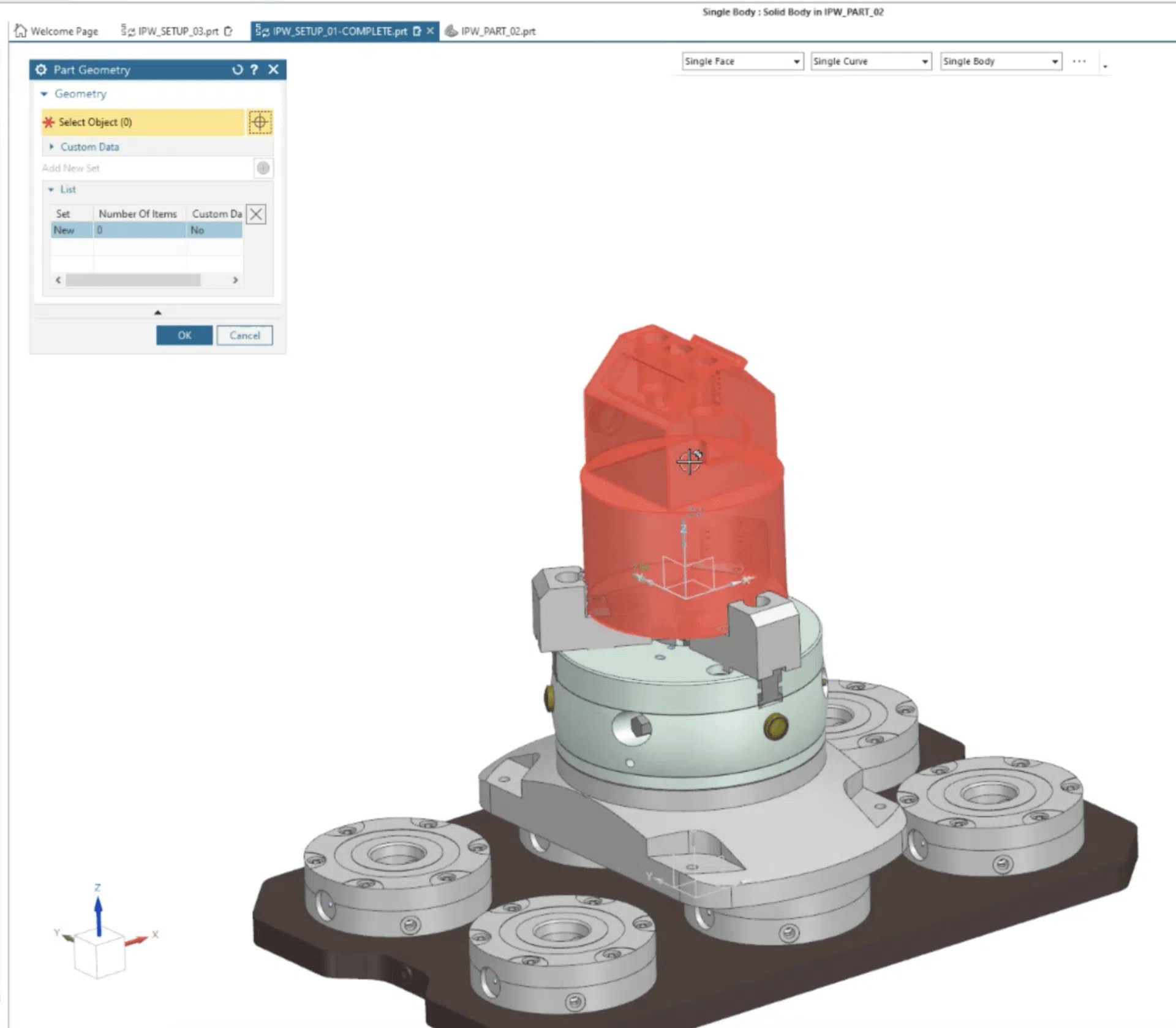

  1. Select object in your part to define the blank.
Siemens NX CAM Object

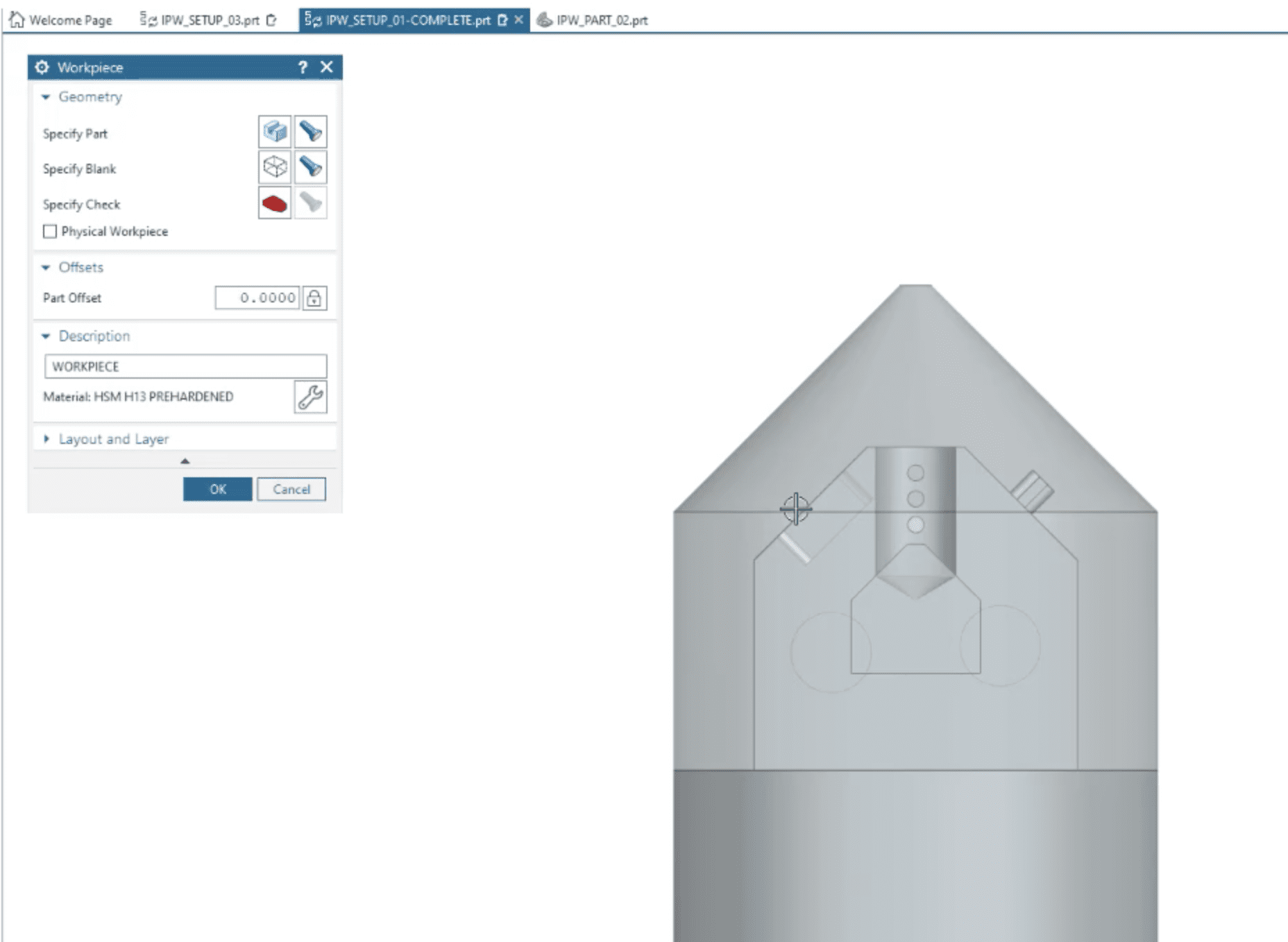

  1. Since I already have a blank selected, I can preview it by selecting the flashlight icon. My blank is a piece of geometry I created – a cylinder with a cone on top.
Flashlight Icon Siemens NX

This is to simulate more complex piece of geometry. It doesn’t have to just be the bounding cylinder or a boundary block. It can be more complicated geometry – including a casting or a waterjet part.

  1. Select OK.

Creating NX IPW Operations

Now that I better understand my part, we’ll start creating some operations that will remove material.

  1. To insert an operation, start by right clicking WORKPIECE in the Operation Navigator. Hover over Insert, and select Operation…
Operations Navigator IPW NX

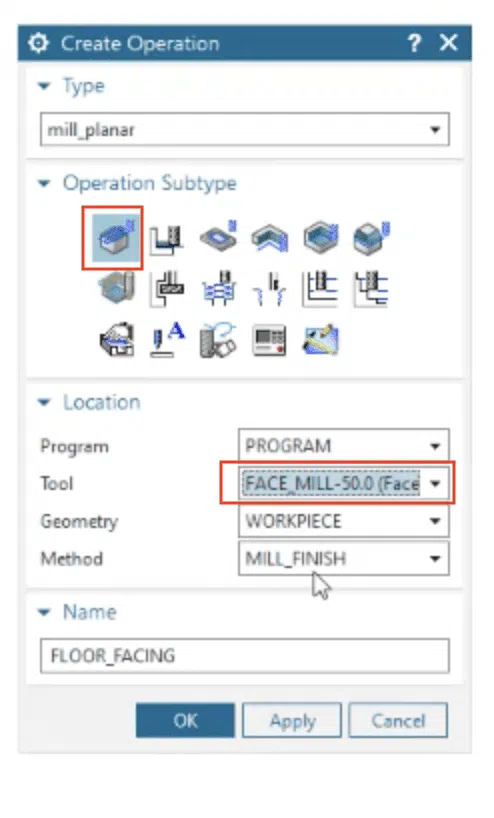

  1. In this example, we’ll create a floor facing Under Operation Subtype, click the FLOOR_FACING icon. Then, select FACE_MILL in Tool options.
Operations Siemens NX

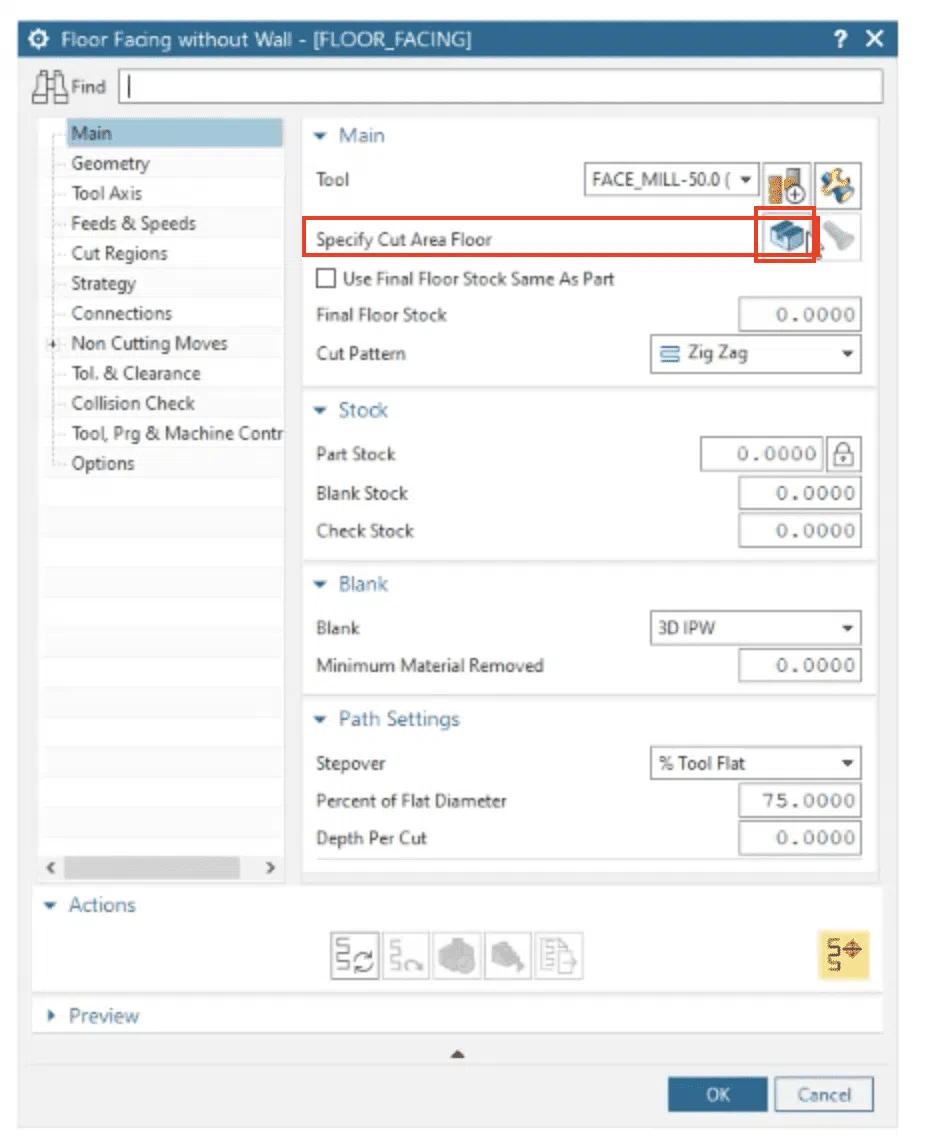

  1. As you can see, 3D IPW is turned on. All we’ll need to do is select the Specify Cut Area Floor icon to select a face on the part. Press
IPW Siemens NX
Cut Regions NX
  1. On the left hand column, select Cut Regions. Change the First Pass Overhand to 55.
Floor Facing Siemens NX

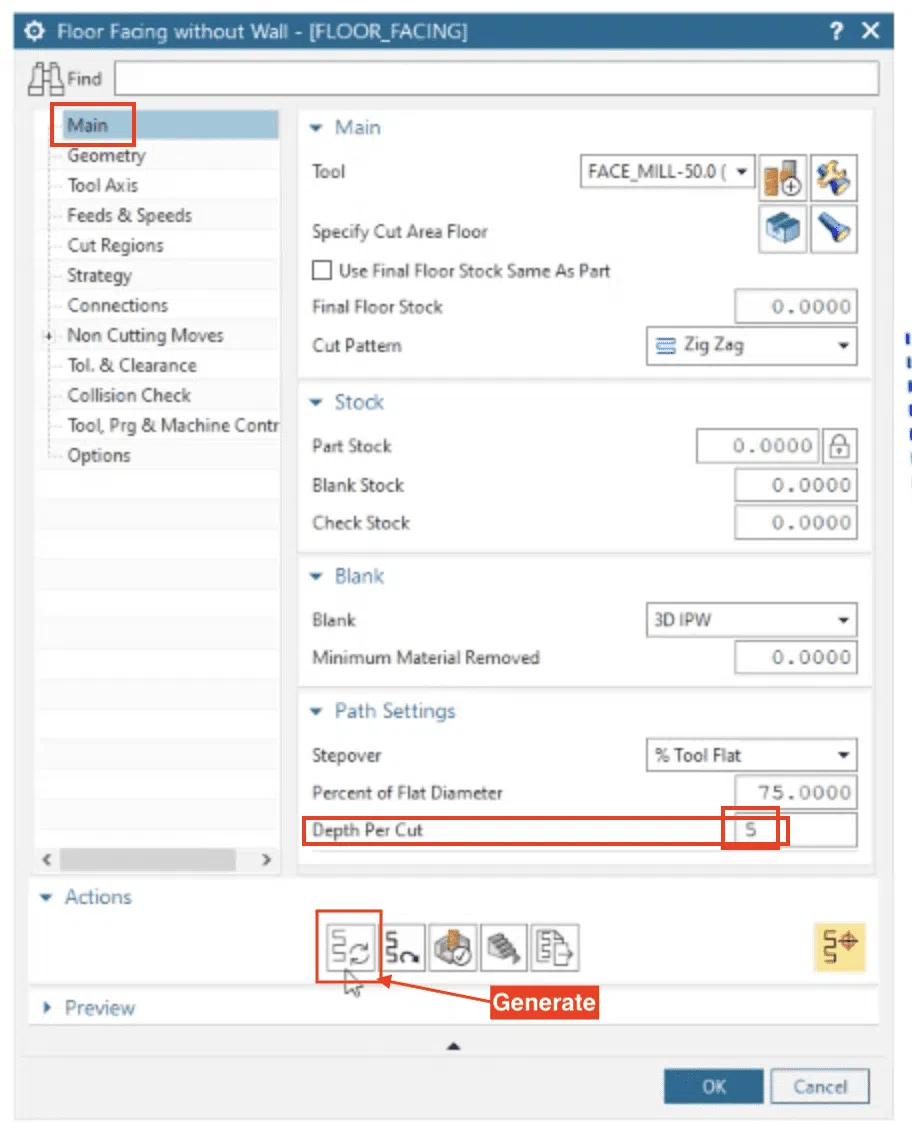

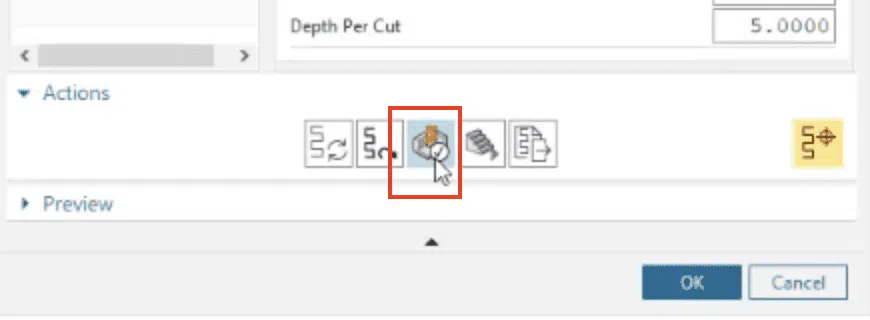

  1. Click on Main on the left hand column. Under Path Settings, change Depth Per Cut to 5mm. Then, select the Generate button under Actions.
NX IPW

As you can see, the cut pattern is currently in Zig Zag. Instead of this, I want to change the setting to follow part.

Siemens NX CAM IPW
  1. To change the pattern, select Follow Part in the Cut Pattern.
Siemens IPW

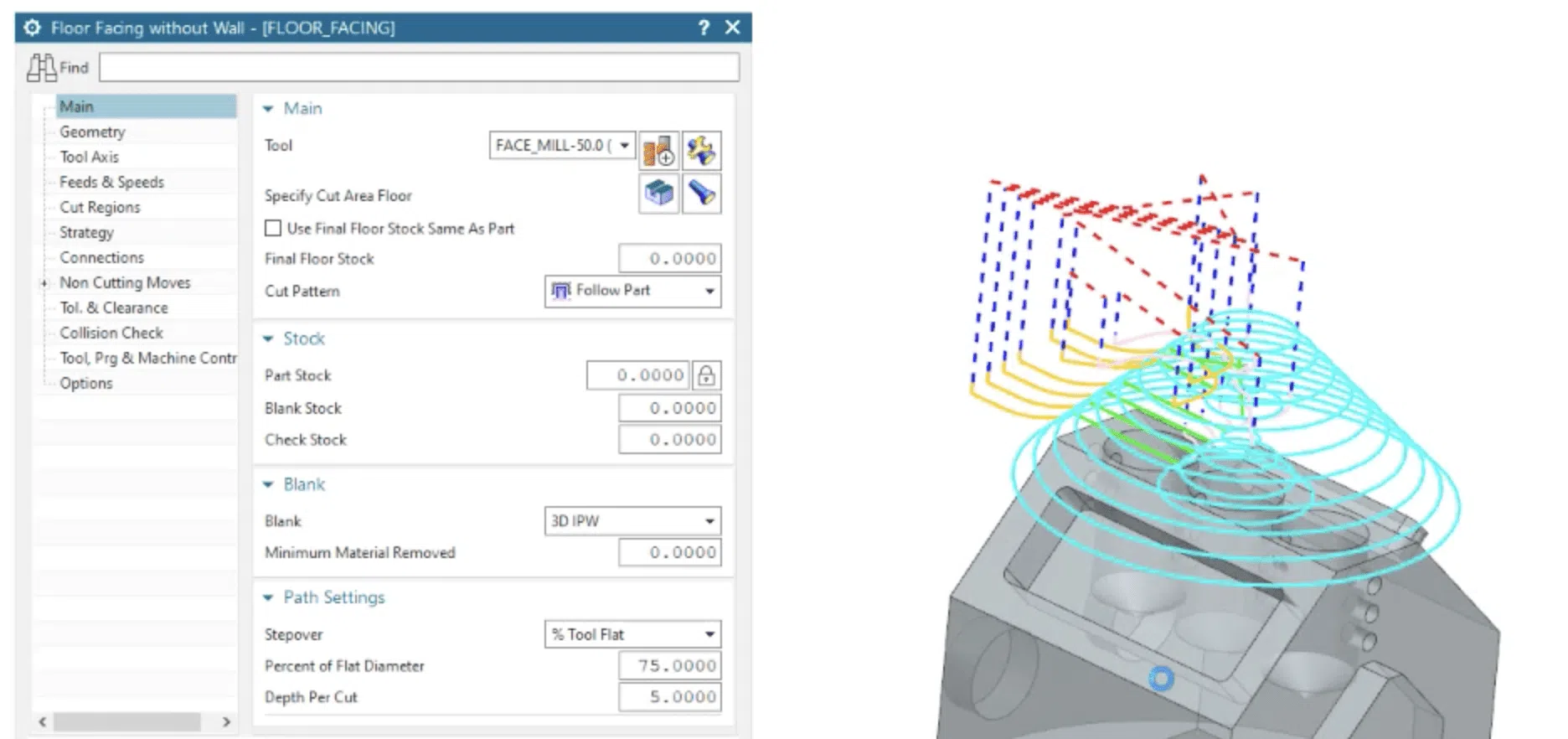

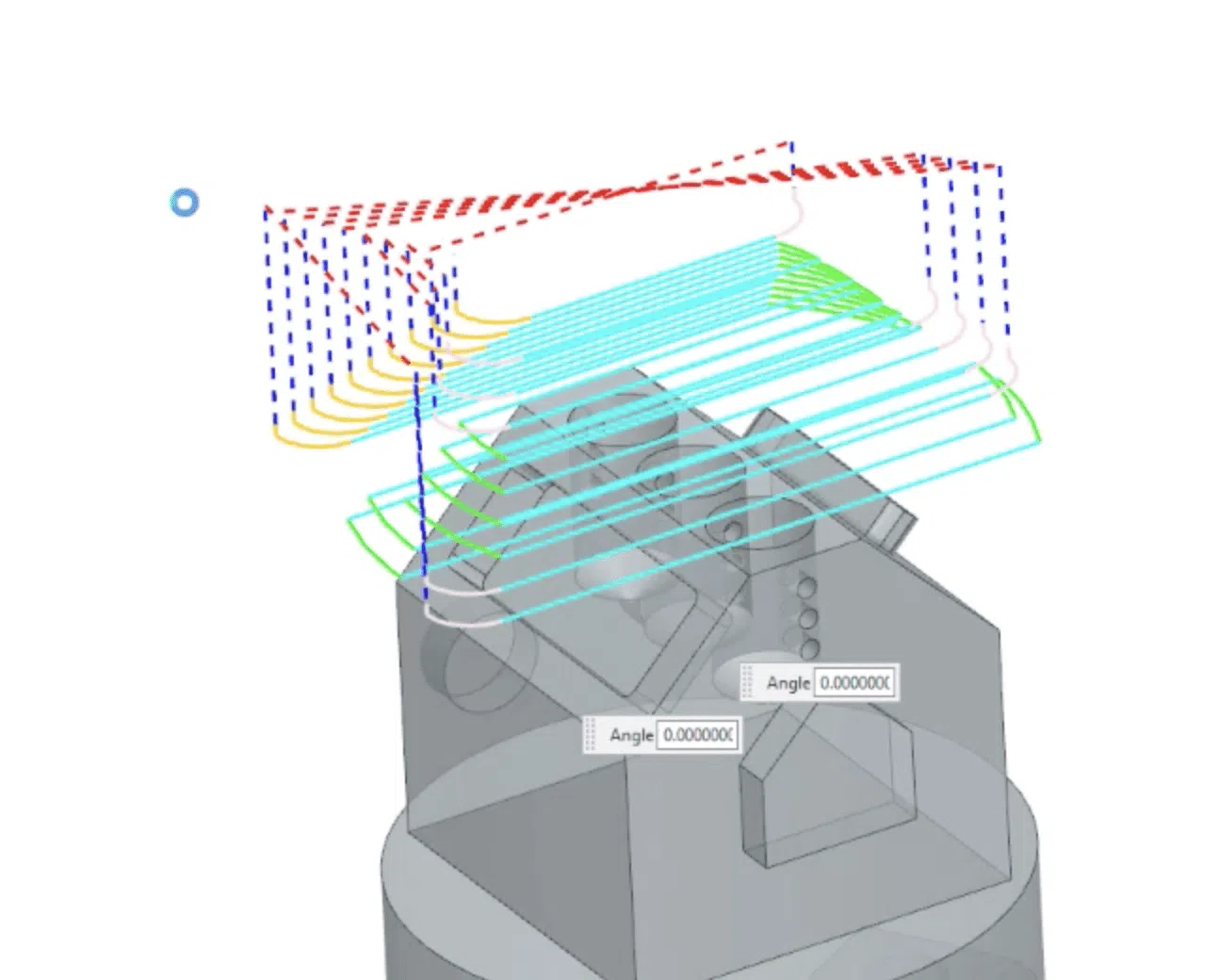

Now, we’re circling around the top of the cone. If we take a look at the toolpath, you can see that the toolpath is driven by our blank geometry.

  1. Under Actions, select the Toolpath Press OK.
NX IPW Toolpath
  1. Use the control icons under Animation Speed to view the toolpath.
Siemens NX Speed

You’ll see that it’s expanding those circles as it goes down the part. Press OK when finished.

Display the Resulting IPW

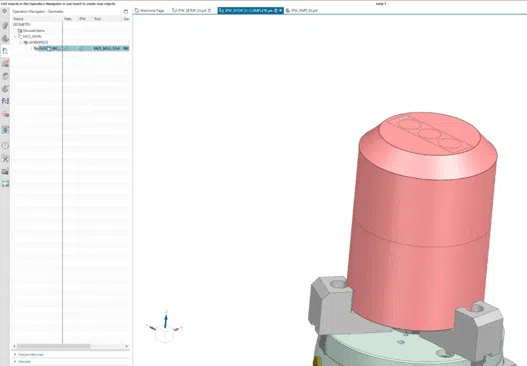

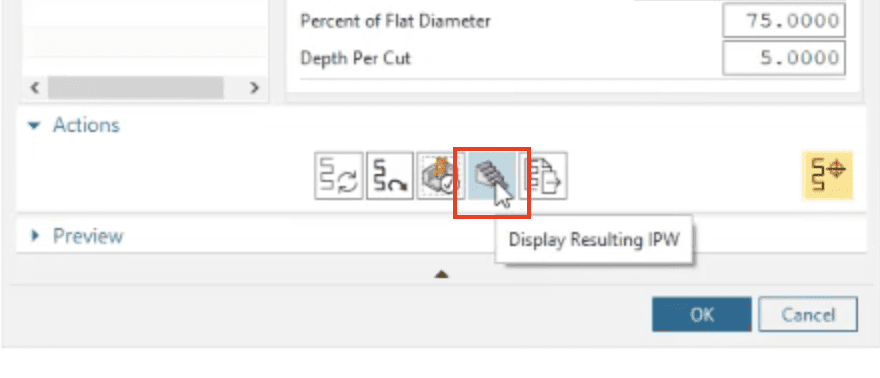

Now that we have a toolpath created, we have the Display Resulting IPW button. If clicked, you’ll see the same thing that we just saw in the 3D Dynamic Verify.

Siemens NX CAM IPW

Press OK. The IPW display will stay on.

Siemens NX IPW

To watch my full NX CAM IPW session from NX University Spring ’21, feel free to take a look at the official Session Rewind.
