How to Find the Interior Part Volume Using Synchronous Technology Delete Face Feature

Let’s cover how to find the interior volume of a cavity, or a void, in your NX part.

The first thing we need to do is add a couple options to the toolbar that are not there by default.

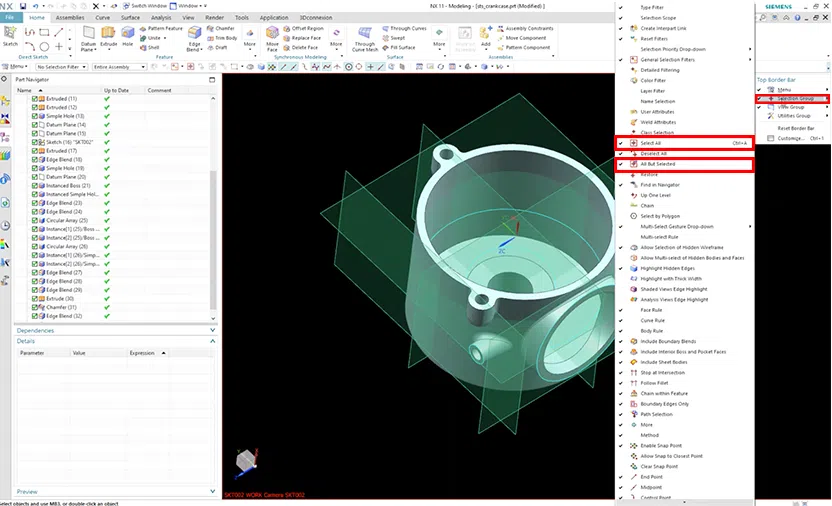

  1. Go to the top order bar, on the right-hand side click the Ribbon Options dropdown –> Selection Group –> turn on “Select All” and “All but Selected” options.
NX Interior Part Volume - Ribbon bar drop down > Selection Group > Turn on select all and all but selected

NX Interior Part Volume – Ribbon bar drop down > Selection Group > Turn on select all and all but selected

Now that we have the correct tools to utilize the synchronous technology delete face feature, you will need to:

  1. Select “Delete Face” on the Ribbon Bar.

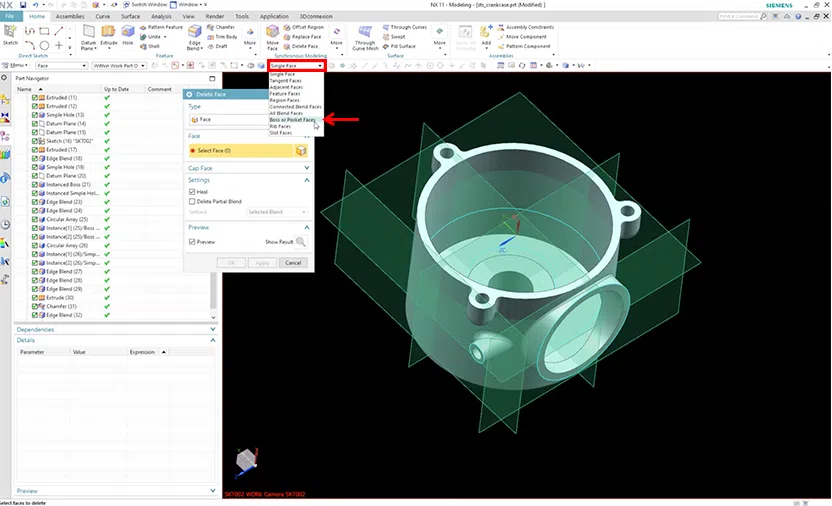

  2. Now, go to the dropdown for your selection filter (by default it is set to single face). We are going to change this to “Boss or Pocket Faces”.
NX Interior Volume - Boss or Pocket Faces

NX Interior Volume – Boss or Pocket Faces

  1. On your part, select the interior face of the pocket, or the volume, you are wanting to measure on the inside of your part.

NX Interior Volume - selecting the interior face of the pocket

Immediately, you can see it is going to delete or select all the faces inside of your part.

NX Interior Volume - You can see it NX will delete or select all faces inside your part

NX Interior Volume – You can see it NX will delete or select all faces inside your part

  1. Go back to the top order toolbar –> “All But Selected

This is going to deselect all of the currently selected objects and select all the other selectable objects on your part automatically. You can now see that all the other faces have been selected on the outside of the body. NX will automatically delete these faces off of the model once you select apply.

NX Interior volume - all but selected

NX Interior volume – all but selected

  1. Select “Apply

The remainder left behind is the interior volume of your part.

NX Interior Volume - Apply

Once you have the interior volume of your part, you can go ahead and take a measurement.

  1. On the Ribbon Bar Select the Analysis Tab –> in the measure category select the More dropdown –> select Measure Body under the body category.
NX Interior Volume - Analysis tab, more, measure body

NX Interior Volume – Analysis tab, more, measure body

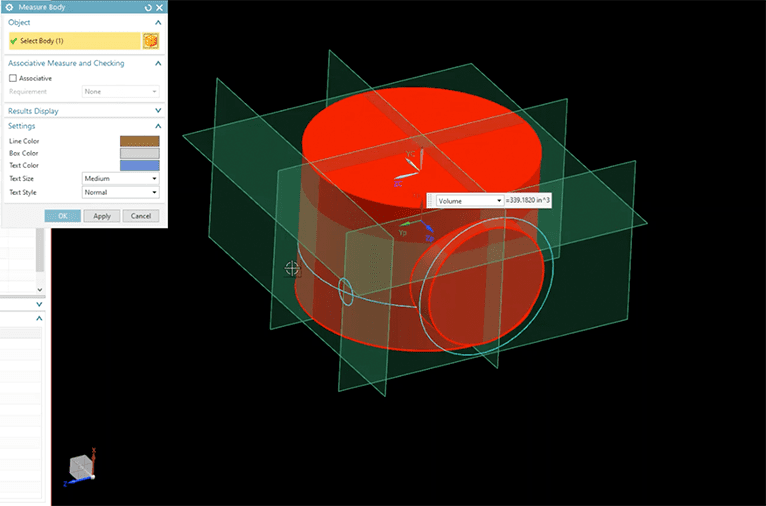

  1. Select the body of your part.

You should be able to easily see the volume of the interior of your part, as well as surface area, mass, radius of gyration, and weight (if you select the dropdown).

NX Interior Volume - Select body of your part

NX Interior Volume – Select body of your part

Enjoy!

For more tutorials like our variable helix NX CAD tutorial, check out our library of articles.

Post by Michael Pinto

For over twenty years, Michael has worked first hand with NX in the aerospace and consumer goods industries, building skills like geometric dimensioning and tolerancing, 3D renderings, and computer aided product design in NX.
