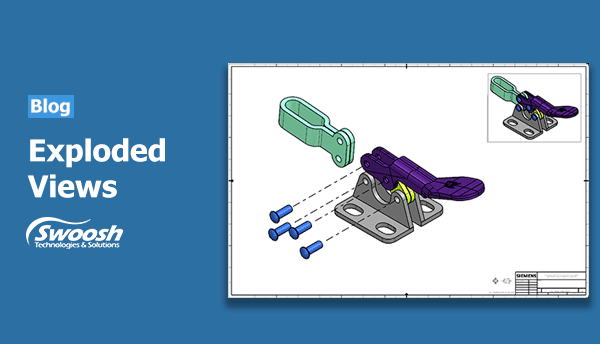

Exploded Views in NX

How to Use Exploded View Drawing Feature in NX

Exploded Views in NX can be a very effective way to portray the (disassembled) assembly. In this NX tutorial, I will start from the drafting environment with the assembly already placed in the drawing workspace.

Note: We will be covering other commonly overlooked functions, like exploded views, at our first-ever virtual edition of NX University–a one-day event covering new features, hidden gems, and best practices for NX Design and NX Manufacturing users.

Turn off the Display Sheet

While viewing the drawing in the drafting environment, turn off Display Sheet (Menu > View > Display Sheet). It may be easier to activate the Display Sheet toggle by adding it to your ribbon bar. This can be done by searching for it in the command finder.

Expand the Model View

Next, go to the Part Navigator and Expand Model Views. Then right-click on Model Views to Add View. This will now be the work view and you should rename it to identify it as the exploded model view.

Select New Explosion under the Exploded View group on the ribbon bar. Rename this new explosion and select OK. (If the exploded group is not shown, activate it with the drop-down on the right of the Ribbon Bar.)

NX CAD Tutorial on Exploded Views, NX Tutorial

Selecting and Moving Objects

In the Edit Explosion Dialogue click Select Objects, which will move together regardless of constraints.

Exploded View with Notes, NX Tutorial, NX CAD

Then, toggle to Move Objects and the familiar handles will appear. Click and drag the arrows to move objects along that axis, and click the spheres to rotate the object on that axis. The snap increment can also be adjusted to move the objects predictable distances.

Select Tracelines in the Exploded View Group and Add Tracelines (if needed). The dialogue will present the selection for 2 points and a vector direction for each point. Changing the vector will reverse the path of the tracelines around the object.

Adding Tracelines

Once you are satisfied with the exploded view, fit the view. This can be easily done with the “END” key. Save the view by right-clicking on the exploded work view within Model Views.

NX CAD Tutorial by Swoosh Tech

View the Exploded View

Toggle Display Sheet back on.

Select Base View. Change the selected part to the drawing part (hint: look at the icons). Then, toggle the Model View to the newly created exploded view. Adjust other settings as desired.

NX Tutorial

Place the view and edit the explosion by repeating this process.

NX Exploded Views - NX Tutorials

And there you have it – a finished exploded view drawing! Enjoy!
