Customizing Your Solid Edge

July 16, 2015


Blog, Solid Edge


Customize Your Solid Edge

Did you know that users have the ability to fully customize their Solid Edge Menus? From adding new groups to your Menu Ribbon, rearranging your icons and changing their sizes. This guide will show how you can make Solid Edge unique.

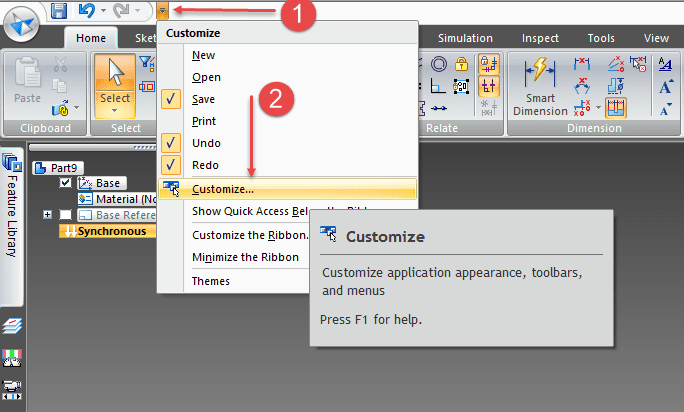

  • You can begin from an open Part, Sheet Metal, or Assembly environment. In the upper left hand side of the screen
    • Click the drop down list next to the Quick Access menu
    • Select Customize from the list
    • The Customize dialog box will load.
  • Here you can customize Keyboard Hotkeys, the Quick Access Menu, the Ribbon Menu, Radial Menu, and change some of the Solid Edge Layout Options. Let’s look at the Ribbon (A) and how we can customize this area.

Note: Depending on which environment is loaded, it will correspond to the default selection listed in the dialog box.  (B) This selection can be changed by clicking the drop down menu and selecting a different environment from the list.

  • Choose command from: (C) is a list of commands available and should be set to All Tabs
  • (E) Is the list of available groups and commands ( library ) a user can add to a new group or tab using the buttons listed under (F)
  • (G) Is where you can see the current Menu Ribbon structure and where you will build your new groups, tabs, and add icons form area (E)
  • (D) When you customize a setting, you can save it as your current Theme, or you can save your changes to a new Theme
  • In box (G) let us look at the current Menu Ribbon commands available, Expand Home -> Solids and right click on Add. Here you can see that you all the different options available, one cool option is that you can customize the size of the original icon. Add currently is a Small Button – if we change it to a Large Button.
menu ribbon
    • When you apply a customization you can save the changes to a current or new theme.
new theme solid edge
  • Note the Icon Change
before icon change
after icon change

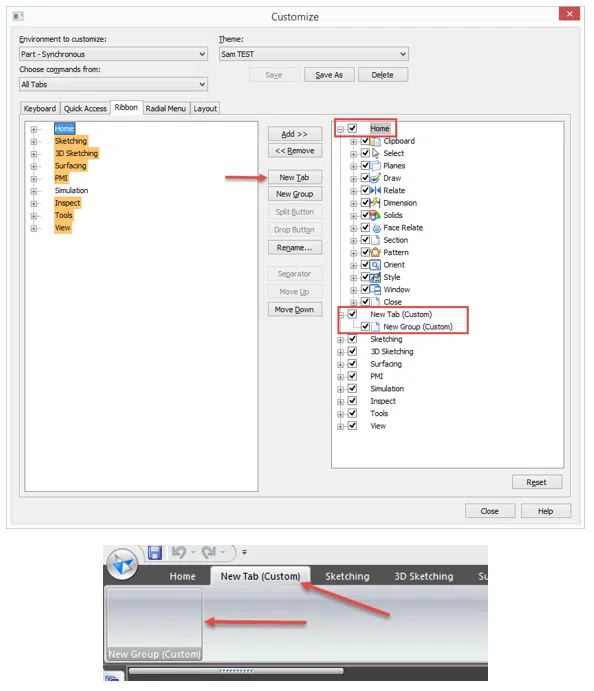

  • New Tabs and Groups can be added as well
    • New Tabs are added to the Menu Ribbon, and any Groups are subsets of Tabs

Note: New Tabs automatically will generate a new Group in the menu list

  • You can Rename the Tab and the Group using Rename

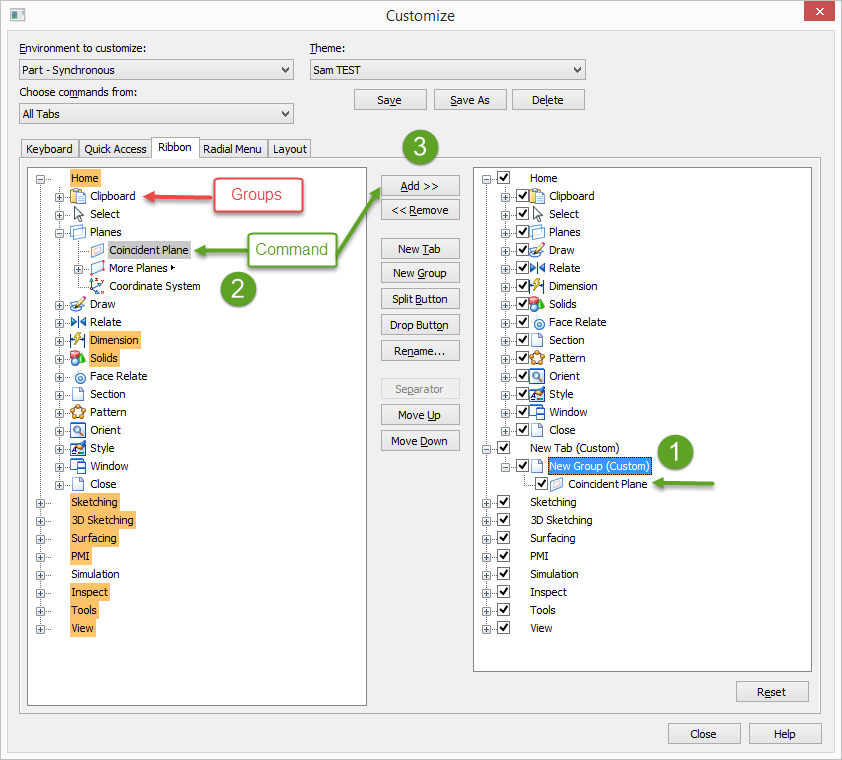

  • To populate your new custom group:
    • Select the New Group from box (G) on the right
    • From the library box (E) expand a group and select a command
    • Click ADD from the center buttons
    • Notice the command places under your New Group in box (G)
  • Click Close -> Yes to save the changes to the Theme
  • Observe the changes made in the Menu Ribbon
customize solid edge
coincident plane
  • You can add as many commands, separators as you need. Just add them from the left box (E) to box (G). If you need to remove commands from box (G)
    • Select the Group or Command and click Remove from the center buttons

Users can be as creative as they want with their customizations and they can help you get work done faster. Happy designing!
